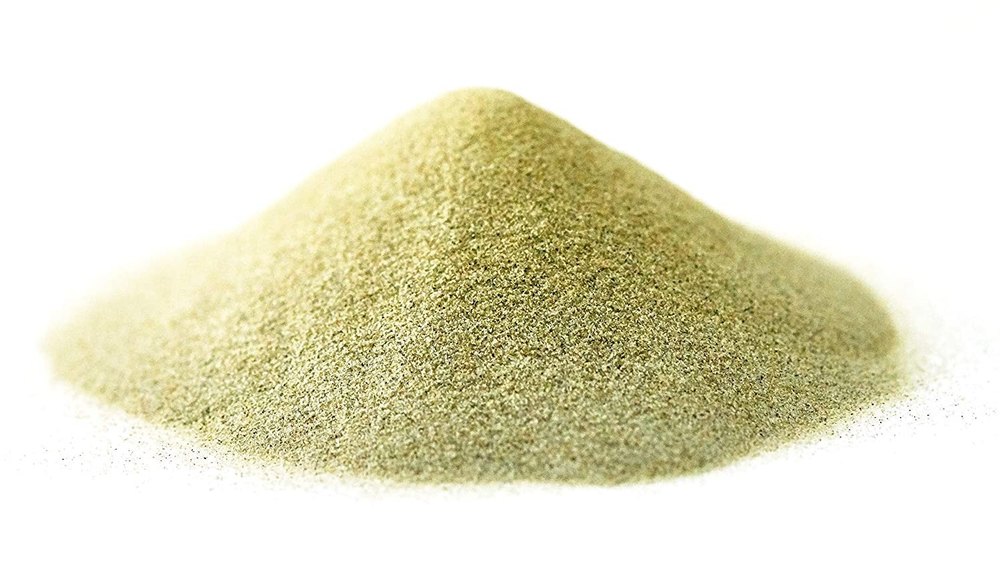

Olivine

Olivine is one of the most common minerals in the earth, and is a major rock forming mineral. Despite this, good specimens and large crystals are uncommon and sought after. Only few localities yield large examples of this mineral, although small and microscopic grains are found worldwide. Olivine is also found in meteorites, and large grains have been reported in many of them.

Olivine is not scientifically classified by the IMA as an individual mineral species, but is rather recognized as a mineral group with the Forsterite and Fayalite end members. Fayalite and Forsterite create a solid solution series, and most specimens identified as Olivine fall somewhere in between this series, almost always leaning more towards Forsterite with a greater content of magnesium. Pure Forsterite is uncommon, and pure Fayalite is very rare.



MAXWORTH MINERALS INDIA PVT LTD

QUALITY CERTIFICATE
Certificate No MAX/MT/QC/001/17-18 Dated 06.02.2018
Grade OLIVINE GRAINS Product Name OLIVINE
    Sample Qty 500 gms
We here by certify that the Olivine Grains shipped for the sample Dtd: 06.02.2018 is having the following results from our lab analysis
Chemical Analysis Sieve Analysis Report
Elements % MM ASTM Actual (%) Cumu (%)
Si02 40.58 1.400 +14 5.50 5.50
Al203 1.18 0.850 +20 5.35 10.85
Fe2 03 8.90 0.600 +30 71.20 82.05
MgO 46.70 0.425 +40 14.65 96.70
Loi 1.05 PAN 3.30 100
Mineral Composition Physical Analysis
Mineral % by Weight Test Result
Olivine 99.00 Conductivity 98 μs/cm at 25.5oC
Others 1.00 Chloride 20 ppm
    Hardness 7.5 Moh Scale
    Moisture 0.10%
    Density 1.75 gm/cm3
Sample taken and sieve analysis under Reference of ISO 11127-2 Conductivity and moisture Analyzed by Meter
Chemical analysis have been determined by Wet analysis method Chloride content Analyze by Spectro Photometer
This results relates to the sample tested.
This certificate shall not be reproduced except in full, without written approval of the laboratory



MAXWORTH MINERALS INDIA PVT LTD

QUALITY CERTIFICATE
US MESH 500 - 850 MICRONS (WASHED) #Mesh 20/40 500 - 850 MICRONS #Mesh 20/40 500 - 850 MICRONS #Mesh 30/60 80 MESH (#50/80) 80 MESH (WASHED) (#120)

#20 0.00 0.00 0.00 0.00 0.00
#30 22.84 20.38 3.93 0.00 0.00
#40 76.33 78.62 44.74 0.00 0.00
#50 0.73 0.86 38.89 1.66 0.54
#60 0.10 0.04 8.58 36.83 1.30
#70 0.00 0.00 2.28 31.04 1.26
#80     1.58 4.60 0.85
#100       14.08 25.20
#120       1.54 15.68
#140       0.00 5.54
PAN
TOTAL 100.00 100.00 100.00 100.00 100.00

CONDUCTIVITY 56 μs/ cmtrs 72 μs/ cmtrs 68 μs/ cmtrs 106 μs/ cmtrs 158 μs/ cmtrs
TDS 31 pmm 40 pmm 38 pmm 58 pmm 87 pmm
CHLORIDE 15 pmm 18 pmm 21 pmm 30 pmm 42 pmm


Sample taken and sieve analysis under Reference of ISO 11127-2 Conductivity and moisture Analyzed by Meter
Chemical analysis have been determined by Wet analysis method Chloride content Analyze by Spectro Photometer
This results relates to the sample tested.
This certificate shall not be reproduced except in full, without written approval of the laboratory
